Probilt™ Probe Card Analyzers

PB6800

PB6800

Overview

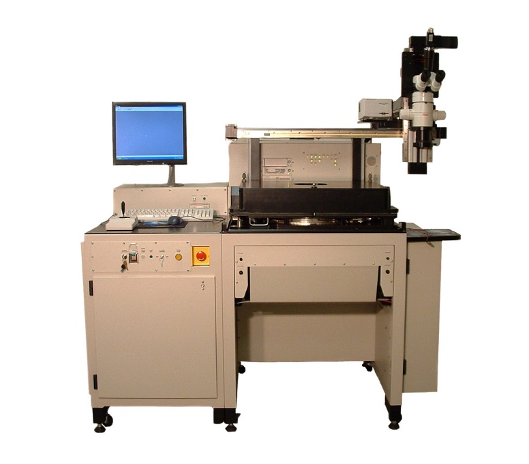

The ITC line of Probilt, probe card analyzers provide fast, accurate and repeatable test data for all types of probe card technologies. Simple user definable vision parameters allow even the newest and most complex probe tip geometries to be captured and accurately measured. Probilt’s PB6800 large measurement chuck allows probe arrays as big as 300 mm in diameter to be touched down without overhanging the chuck surface.

The Probilt has many features that make it the ideal analyzer for all probe card technologies, including the newest probe cards being used to test the largest memory arrays. Its excellent electrical measurement capability and the ability to drive relays on any channel make it the best tool for probe cards with complex circuits and relays on the PCB. With 300Kg of lift force, it has long been recognized as the analyzer of choice for vertical probe card manufacturers.

Features

  • PB6800 offers 12” dia. chuck for 300 mm arrays
  • High volume production throughput
    • Fast Quad Core Processor
    • Distributed Processing
    • Overlapped Tests
  • Motherboard/MUX Interface – No Cables
    • 12,000 Channel Capability
    • Kinematic coupling for high repeatability
    • Fast motherboard and probe card change
    • Software configurable relay control
  • Enhanced high performance LED lighting
    • Portable lighting recipes for all technologies
    • Tests all probe card technologies
  • Closed loop stage with 0.1μ encoders
    • 12” x 8” stage travel for largest cards
    • 300Kg force Z stage, 0.75” travel
  • Powerful, easy to use software
    • Simple test program generation
